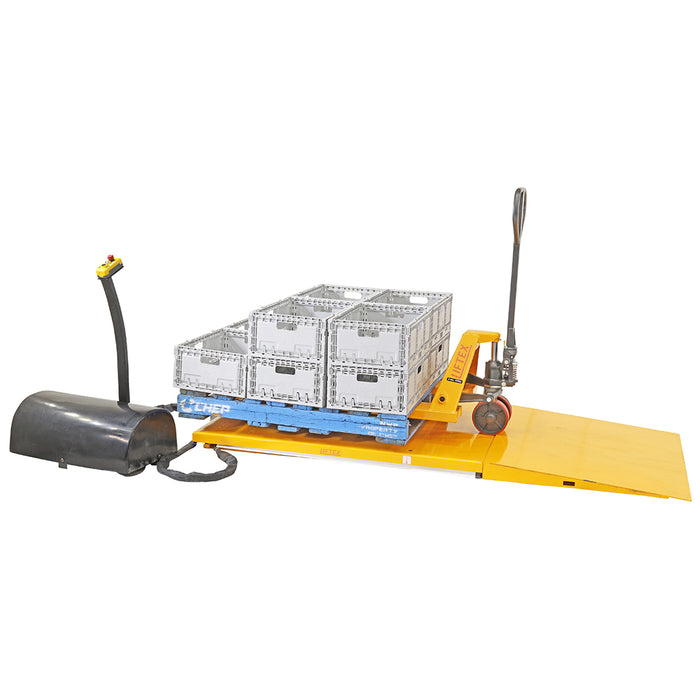

2000kg Capacity Low Profile Lift Table with ramp

2000kg Capacity Low Profile Lift Table with ramp

SKU V2101
  • Many applications require the regular loading and unloading of palletised goods.
  • Repetitive lifting and stretching can be time consuming and hazardous.
  • Using pallet lift tables elevates pallets to the optimum lift height reducing the risk of repetitive strain injury and increasing productivity.
  • Supplied with entry ramp to allow pallet truck entry
  • Can be supplied with optional rotator ring
  • Tables are specially made for handling pallets, no need for a pit or load ramps
  • Upper platform fitted with safety perimeter to prevent descent on contact with obstructions
  • 24v control box with UP and DOWN buttons and emergency stop
  • External power pack equipped with a relief valve against overloading and a compensating flow valve for controlling lowering speed
  • Power Supply: 240v (3 phase 415v available if required)
  • Hose burst safety valve to stop the lift table lowering in case of hose breakage
  • Removable lifting eyes to facilitate handling and installation of the lift table
  • Oil-less bushings on pivot points
  • Lifting Time: 25
  • Load Capacity: 2000kg
  • Platform Size: 1180x1600mm
  • Lifting Range: 105-880
  • Unit Weight: 234kg
